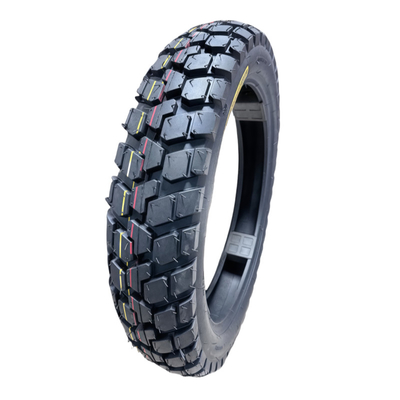

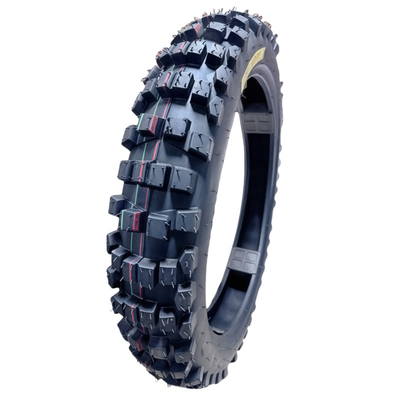

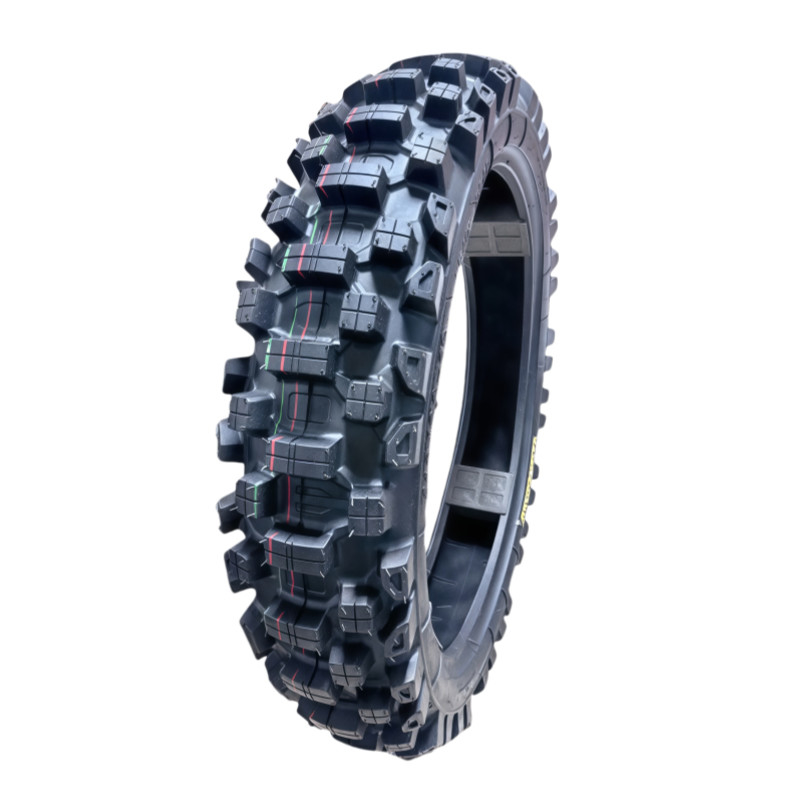

5000000 Per Year Production Conditions 110/90-19 Motorcycle Off-Road Tire With High Mileage And Nylon Cord Material

Product Details:

Place of Origin:	Chongqing
Brand Name:	Thunderbolt fire
Certification:	CCC SGS ISO9001 CE
Model Number:	110/90-19

Payment & Shipping Terms:

Minimum Order Quantity:	200
Price:	Can negotiate
Packaging Details:	Single packaging
Delivery Time:	30 days
Payment Terms:	T/T,L/C,
Supply Ability:	Annual production capacity of 3 million sets

Contact Now

Detailed Product Description

Model NO.:	110/90-19	Diameter:	8-21
Tire Design:	Nylon Cord For Diagonal Tires	Tread Pattern:	Cross-Country Tread Pattern
Kind:	Tricycle Tire	Tire Hierarchy:	6PR
Customized:	Customized	Cord Material:	Nylon
Condition:	New	Material Quality:	45% 55%
State:	Brand New Genuine Product	Ply Rating:	6PR
Transportation Package:	1PC Per Colourful Wrapping, 10PCS Or 20PCS Per Bu	Wear Resistance:	Over 20000 Kilometers
Production Conditions:	5000000 Per Year	Tread Depth:	13mm-20mm
Brand:	Customized According To Customers	Package:	5 Pieces Per Set, 20 Pieces Per Set
Model:	8 Inches To 21 Inches And Complete ATV Inner And O	Conditions Of Use:	Various Complex Roads
Performance:	High Temperature Resistance, High Temperature Resi	Are You A Factory?:	We Are An Integrated Industry And Trade Company
Do You Support Wholesale:	Support	Transport Package:	Provide
Specification:	110/90-19	Trademark:	Thunderbolt Fire
Origin:	Chong Qing	After-sales Service:	Provide
Warranty:	1 Year	Type:	Motorcycle Tire
Highlight:	110/90-19 Motorcycle Off-Road Tire , Nylon Cord Motorcycle Off-Road Tire

1.Sidewall

The sidewall of a scooter tire provides structural support and protection. It is made of a combination of rubber and reinforcing materials such as cords. The sidewall contains important information such as the tire size, load - carrying capacity, and speed rating.

The sidewall's strength is important as it helps to maintain the shape of the tire and withstand lateral forces during cornering. A well - constructed sidewall can also absorb shocks and vibrations from the road, improving ride comfort. Some scooter tires have reinforced sidewalls for added durability, especially for scooters that are used in more demanding conditions such as carrying heavy loads or riding on rough roads.

2.Inner Structure

Inside the tire, there is a carcass. The carcass is usually made of layers of cords, which can be made of materials like polyester, nylon, or steel. The cords are arranged in a specific pattern to provide strength and flexibility to the tire. For example, in a radial - ply tire (a common construction for scooter tires), the cords run radially from the bead (the part of the tire that sits on the rim) to the tread.

The bead is a crucial part of the tire that seals the tire to the rim. It is usually made of a high - strength steel wire coated with rubber. The bead ensures that the tire is properly seated on the rim and maintains air pressure. A properly functioning bead is essential for safety as it prevents the tire from coming off the rim during riding.
